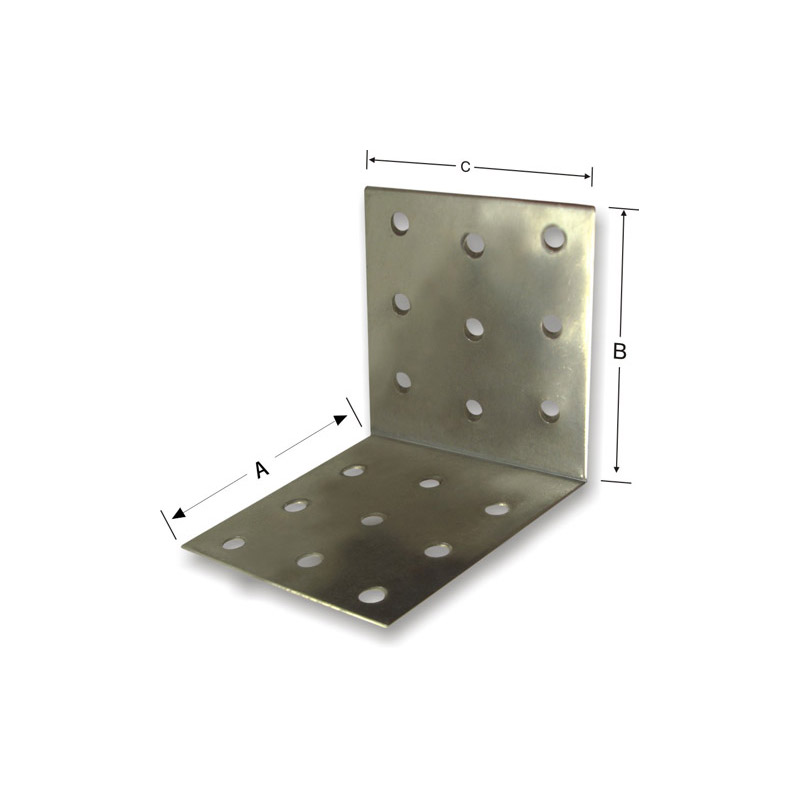

Leichte Ausführung, Gleichschenklig, Verzinkt
| Article No. | Dimension | No of Holes | Size of Holes | Material | Finish | |||||
| A | B | C | D | E | T | |||||
| HGL011-01 | 40 | 40 | 20 | 2 | 4 | 4.0 | MS | Zinc Plated | ||
| HGL011-02 | 40 | 40 | 40 | 2 | 8 | 4.0 | MS | Zinc Plated | ||
| HGL011-03 | 40 | 40 | 20 | 2 | 10 | 4.0 | MS | Zinc Plated | ||
| HGL011-04 | 50 | 50 | 40 | 2 | 8 | 4.0 | MS | Zinc Plated | ||
| HGL011-05 | 60 | 60 | 40 | 2.5 | 10 | 4.5 | MS | Zinc Plated | ||
| HGL011-06 | 60 | 60 | 45 | 2.5 | 5 12/2 | 4.0/10.0 | MS | Zinc Plated | ||
| HGL011-07 | 60 | 60 | 60 | 2.5 | 15 | 4.0 | MS | Zinc Plated | ||
| HGL011-08 | 60 | 60 | 80 | 2.5 | 22 | 4.5 | MS | Zinc Plated | ||
| HGL011-09 | 60 | 60 | 100 | 2.5 | 24 | 4.1 | MS | Zinc Plated | ||
| HGL011-10 | 80 | 80 | 60 | 2.5 | 24 | 4.0 | MS | Zinc Plated | ||
| HGL011-11 | 80 | 80 | 80 | 2.5 | 32 | 4.5 | MS | Zinc Plated | ||
| HGL011-12 | 90 | 90 | 40 | 2.75 | 16 | 4.0 | MS | Zinc Plated | ||
| HGL011-13 | 90 | 120 | 40 | 2.75 | 18 | 4.0 | MS | Zinc Plated | ||
| HGL011-14 | 100 | 100 | 100 | 2.45 | 50 | 4.5 | MS | Zinc Plated |
